CS11-5.2/CS13-5.2

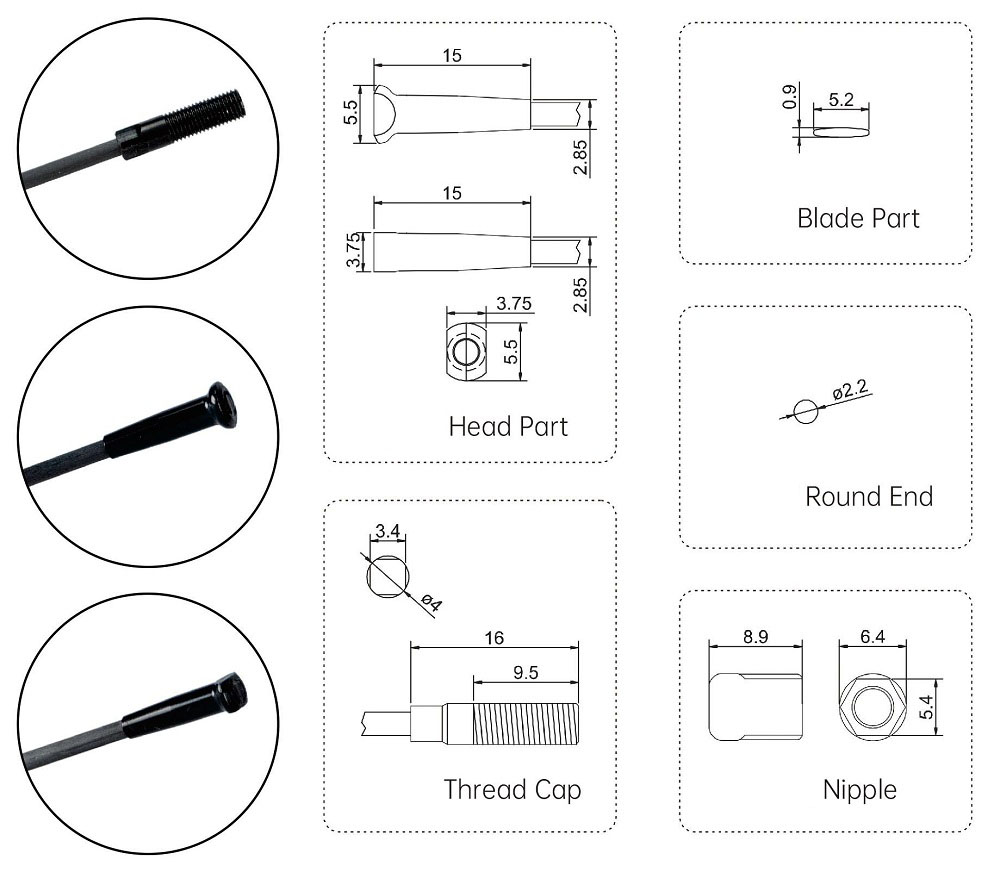

CS11-5.2/CS13-5.2 Carbon Spoke Specifications

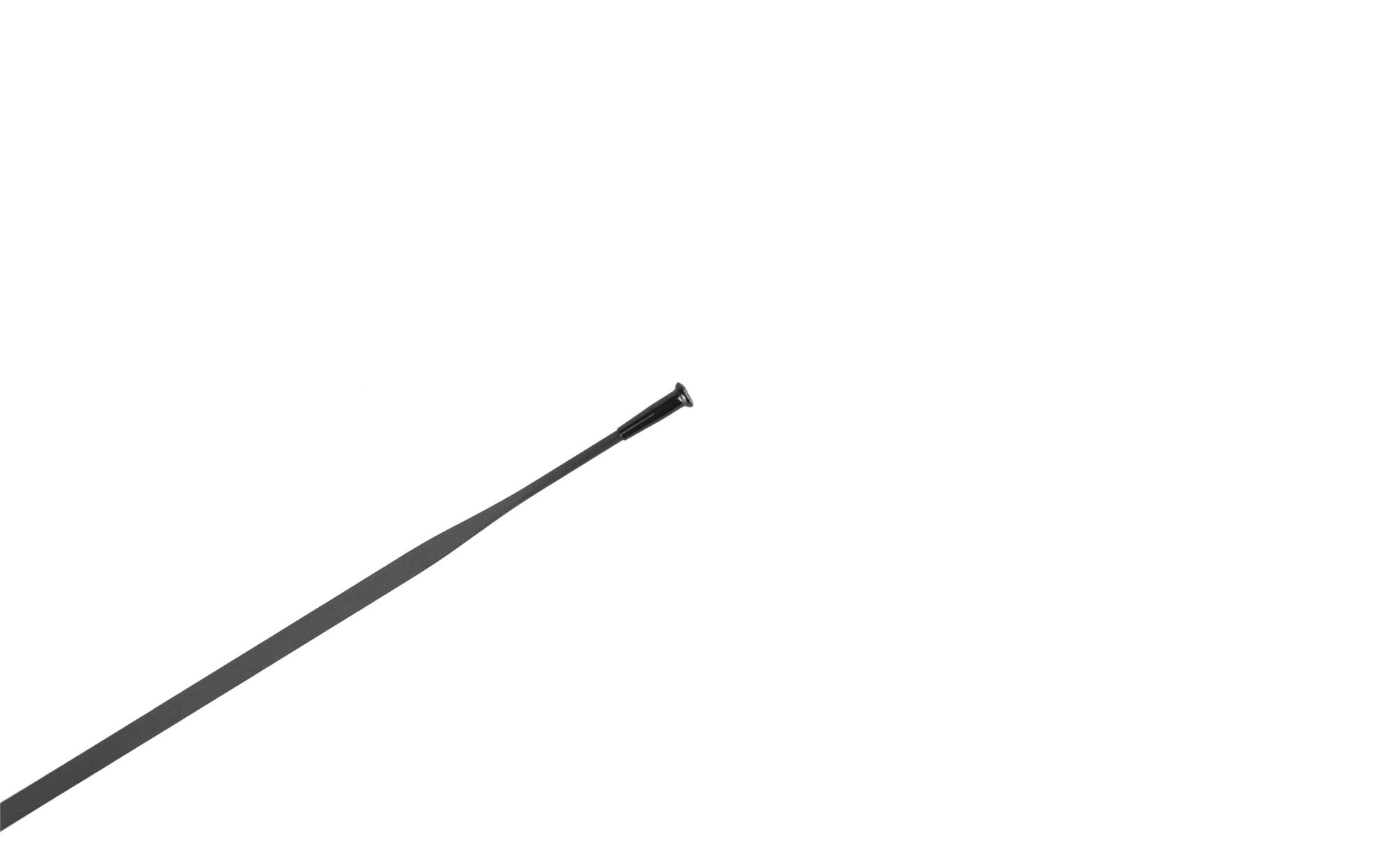

• Order Model: CS11-5.2 Round Head / CS13-5.2 T-Head
• Weight Range: 3.5±0.1g, including nipple

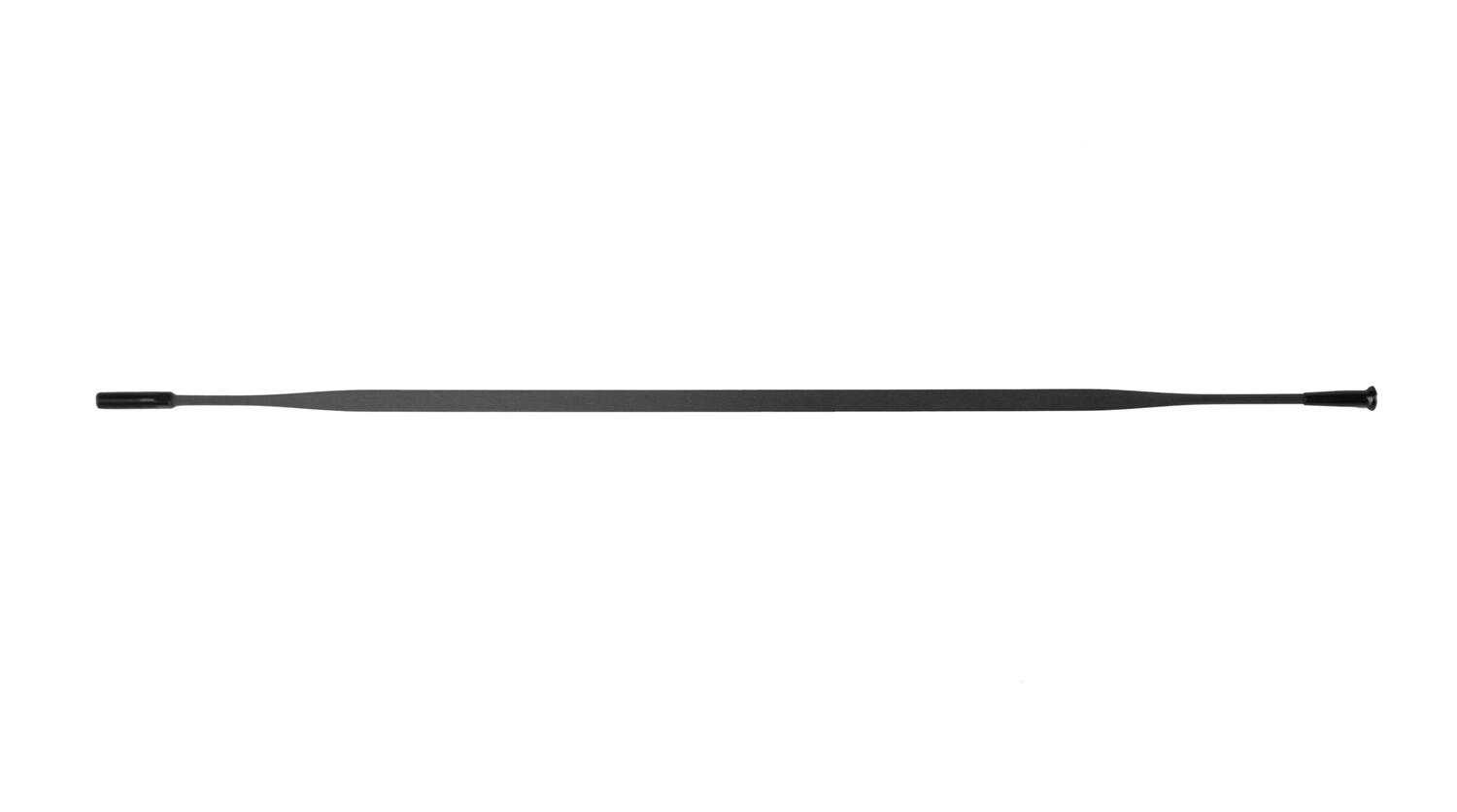

• Length Range: 240mm-299mm
• Length Tolerance: ±0.5mm
• Width: 5.1±0.1mm
• Thickness: 0.9±0.05mm
• Diameter of Round End: 2.2±0.05mm
• Angle Deviation of T-head: ±10°
• Tensile Force In Destructive Testing: 500kgf
• Outgoing Inspection: 320kgf
• Lateral Rigidity Failure Value: 115kgf
•
